Features / Specification
(As per IS 12615)
| KW / HP | 250 KW To 315 KW / (335 To 425 HP) |
|---|---|
| RPM / Pole | 3000 RPM (2 Pole)
1500 RPM (4 Pole) |
| Frame Size | 355L Only |
| Mounting | B3 Foot Mounted B5 Flange Mounted B35 Foot cum Flange Mounted |
| Standard | IE2 / IE3 |
| Ambient Temperature | 50 °C |
| Body Enclosure | Cast Iron |
| Duty | S1 |
| Enclosure | TEFC |
| Insulation class | F Class |
| IP degree of protection | IP55 |
| Phase | 3 Phase Motor |
| Terminal Box Location | TOP |
| Voltage | 415 V +-10% |
| Frequency | 50 Hz +-5% |
| Cooling | IC411 |
Also available in the following specialty
- VPI / VFD Suitable
- Thermistors
- Insulated Bearing
- Roller Bearing
- Space Heater
- Forced cooling
- T.B Location: LHS / RHS
Description:

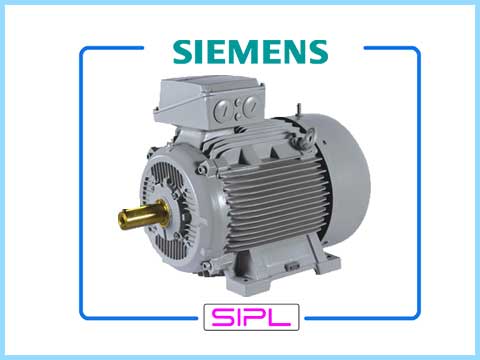

We Sourabh Innovative Pvt. Ltd. are the Stockist & Suppliers of Siemens Champion Series Motors having range from 250 KW to 315 KW or 335 HP to 425 HP. This motors are 3 phase with 415 volt & Frequency of 50 Hz. Siemens Champion Series Motors are available in 3000 RPM, 1500 RPM, 1000 RPM and 750 RPM with respect to and 2 Pole, 4 Pole, 6 Pole and 8 Pole with cast iron body. This motors are compatible with S1 duty and standard with IE3 & IE4 efficiency. Available Frame sizes are from 355 to 500 frame. Mounting options are B3 (Foot Mounting) B5 (Flange Mounting), B35 (Foot cum Flange Mounting) available with Terminal Box Position at RHS Side. Siemens Champion Series Motors are available in insulation class F & temperature rise limited to Class B with IP 55 degree of protection. This motors are also available with specialties i.e. VPI / VFD Suitable, Double shaft, T.B Location: LHS / TOP.
Application:
Pump, Fan, Compressor, Paper Machinery, Dairy Equipment, Hydraulic press, HVAC, Grinding Machine, Vertical Boring, Milk Pumps, Chilling Plants, Blenders, Pulverize, Condensers, Agitators, Air Compressors, Centrifuges, ID & FD Fans, Cooling Tower, Cold Storages, Plastic Machinery, Machine Tool, Air Conditioning, Textiles Machinery.
