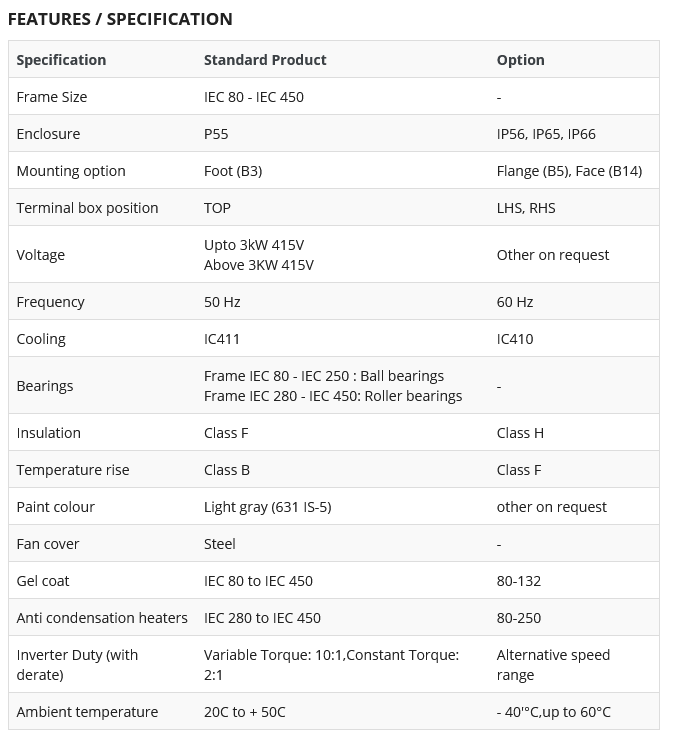

The above specification and options give a brief summary of features available for crusher duty motors. For a full listing of optional features, please contact us.
Description:

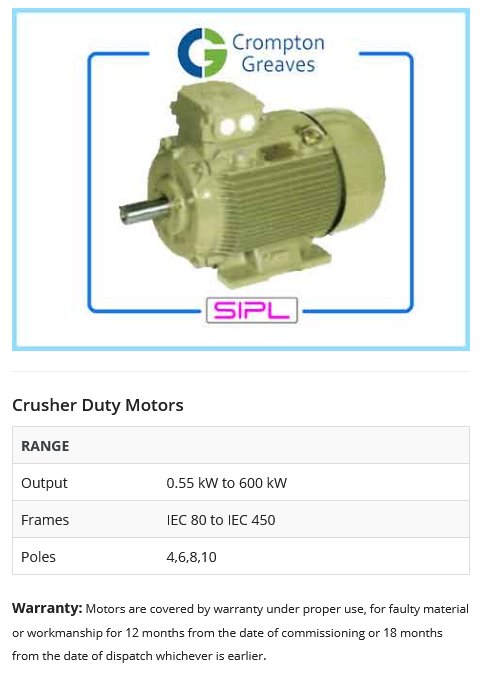

We Sourabh Innovative Pvt. Ltd. are the Stockist & Suppliers of CG Power (Crompton Greaves) Crusher Duty Motors having range from 0.55 KW to 600 KW & 0.75 HP to 800 HP. This motors are 3 phase with 415 volt & Frequency of 50 Hz. The crusher duty motors available in 1500 RPM, 1000 RPM, 750 RPM & 600 RPM with respect to 4 Pole, 6 Pole & 8 Pole & 10 Pole. Available Frame sizes are from 80 to 450 frame. Mounting options are B3 (Foot Mounting), B5 (Flange Mounting), & B14 (Face Mounting) available with Terminal Box Position at TOP Side, LHS Side & RHS Side. This motors having standard cooling system IC411 and options having with IC410 also. Ball bearings used in Frame 80 - 250 & above Frame 280 – 450 there are Roller bearings used in it. Crusher duty motors are available in insulation class F & temperature rise Class B. This motors are Painted with colour Light Gray (631 IS-5) (other on request). Steel Fan cover is fitted to protect cooling fan. Gel coat on winding overhang from frame 80 to 450. Anti-condensation heaters also available in frame 280 to 450. This motors are Inverter Duty (with derate) Variable Torque: 10:1, Constant Torque: 2:1. Ambient temperature of crusher duty motors are 20 °C to + 50° C.
Application:
Cone Crusher, Gyratory Crusher, Jaw Crusher, Roller Crusher, Impactors, Pulverisers.
Leading Crompton Greaves Crusher Duty Motors Suppliers, Traders, Stockist and Distributors in Pune, Maharashtra
The Crompton Greaves have standard cooling system and have the output range between 0.55kW to 600kW. The frame sizes are available in 80 to 450 frames. The ball bearings used in frames are in between 80 to 250 and could also be above 280 to 450 where the roller bearings are used into it. For protecting the cooling fan the Steel fan cover is fitter there. They are inverter duty motors having both variable and constant torque. The mounting options include Foot mounting B3, Flange mounting B5 and Face mounting B14. The gel coating used is of IEC80 to IEC450 standard.
