Features / Specification
( IEC 60034-30-2008 & Dimension as per IS: 1231 & IS 2223 )
| Voltage | 415 V |
|---|---|
| Ambient temperature | 50 Degree Celsius |
| RPM/Pole | 3000 (2 pole)/1500 (4 pole)/1000 (6 pole)/750(8 pole) |
| Standard | Brake Motor |
| Terminal box location | Top |
| KW/HP | 0.18 - 355 kW/( 0.25 - 470 HP) |
| Body enclosure | Cast Iron |
| Duty | S1 |
| Enclosure | TEFC |
| Frame size | 71 - 355L |
| Frequency | 50 Hz |
| IP degree of protection | IP55 |
| Insulation class | F Class |
| Mounting | B3 Foot Mounted/B5 Flange Mounted/B35 Foot cum Flange Mounted |
Also available in the following specialty
- VPI/VFD Suitable
- Thermisters
- Insulated Bearing
- Roller Bearing
- Space Heater
- Forced cooling
- T.B Location: LHS/RHS
Application:
Pump, Fan, Packing Machinery, Coiler / De-coiler, Agro Equipment, Food Processing Equipment, Agitator, Milling Machine, Drilling Machine, Crane & Hoists, Conveyors, Machine Tool, Material Handling, Crusher, VSI, Roller Tables, Hammers / Press, Ball Mill, Hot Dryers, Heavy Duty Conveyors, Mixers, Reactors, Expellers, Jaw Crushers, Disintegrators.

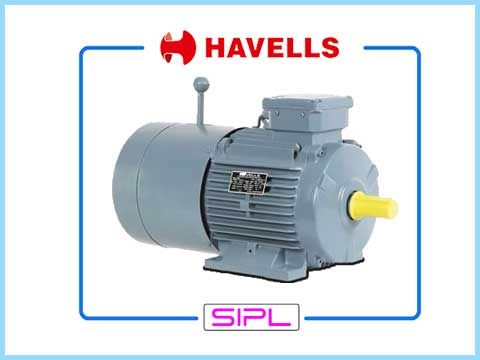

The Havells Break motors have the voltage range of 415V with the efficient ambient temperature of 50`C. They have the standard of Brake motors having the location of terminal box at the top. The raw material used in body enclosure is Cast iron with TEFC enclosure. The frame size of these motors varies from the 71 to 355 frames. These are fail safe motors that is meant for the immediate applying of brakes in case of failure of power supply. These motors are also available having the different features of Roller bearing, space heating, Thermistors, Force cooling, Insulated Bearing, etc. They are used in the Pumps, fans, crane and hoists, Hammers/Pressors, Ball mill, hot dryers, etc.
